High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° (as shown in pictures) and straight for easier connection. Stainless steel housing, dual ceramic ballbearings and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.



• Power range: 550-750 HP;
• Displacement of the engine: 2-3.5l;



Compressor side:

• Compressor wheel: in-house made, reinforced 64/79mm 10+0 blades machined from the solid aluminium;
• Intake: 101mm (4");
• Air outlet: 63mm (2.5");



Core:

• Bearings: dual ceramic ball bearings;
• Cooling: water cooling with 2 x M14x1.5 ports;
• Lubrication: AN4 oil inlet with integrated oil restrictor;



Turbine side:

• Housing: twin scroll, 16cm2 / AR: 0.90;
• Turbine wheel: custom design 76/64mm 10 blades
• Flange: T4 twin scroll;
• Exhaust connection: 3" V-band clamp;



Not sure which turbocharger to choose? Check out our HTX turbos specs page for quick comparison.



More information about optional extras:

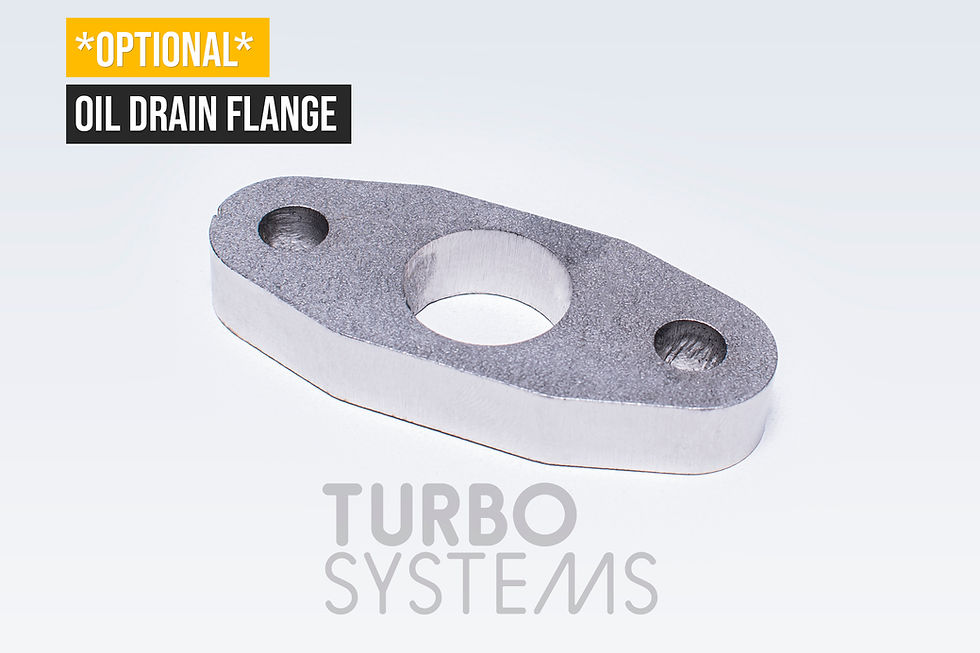

• Oil drain flange page: https://www.turbosystems.info/product-page/htx-turbo-oil-drain-flange
• HTX turbo V-band clamp page: https://www.turbosystems.info/product-page/3-inch-stainless-steel-v-band-clamp
• Gasket page: https://www.turbosystems.info/product-page/gasket-for-htx-turbochargers





ATTENTION! Import taxes may apply when buying from outside EU. Tax rates are calculated and collected by buyers local customs. VAT (Value Added Tax - 21%) is applied only for buyers from EU. For full information about import taxes in your country please visit your local customs website.
